RS IXS-C621A0 G-U2N1-P2G0-E26I0 2U Rackmount Dual 3rd Gen Intel® Xeon® Scalable Storage Server

Name: RS IXS-C621A0 G-U2N1-P2G0-E26I0 2U Rackmount Dual 3rd Gen Intel® Xeon® Scalable Storage Server
SKU: RS IXS-C621A0 G-U2N1-P2G0-E26I0
Availability: OutOfStock

SKU: RS IXS-C621A0 G-U2N1-P2G0-E26I0

Out Of Stock (End of Life)

TBC

Change Configuration

System Configuration

Out Of Stock (End of Life)

Details & Specifications

Chassis:

Chassis Form Factor	2U Rackmount

Cooling:

System Fans	4 x 80x80x38mm (16,300rpm)

Dimensions:

Item Depth (CM)	73
Item Height (CM)	8.75
Item Width (CM)	43.8
Rack Units	2U

Front IO:

# NMI buttons	1
# Reset buttons	1
Front IO - # USB 3.2 Gen 1 Type-A	1
Front IO - LED	1 x Power button with LED 1 x ID button with LED 1 x System status LED 1 x HDD activity LED 2 x LAN activity LEDs

Internal IO:

# BIOS recovery jumpers	1
# Clear CMOS jumpers	1
# Front panel headers	1
# HDD back plane board headers	1
# IPMB connectors	1
# USB 3.2 Gen1 headers	1
# VROC connectors	1

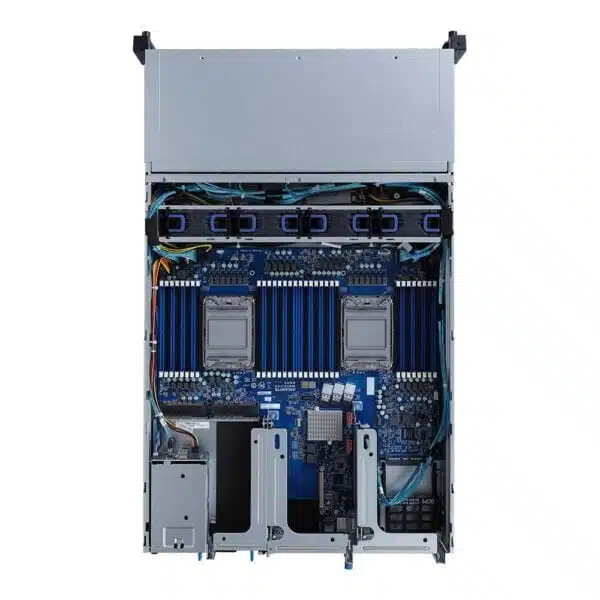

Memory:

# Memory Slots	32
DDR Rev.	DDR4
Max. Memory Capacity (GB)	8192
Max. Memory Channels	8
Max. Supported Memory Frequency (MHz)	3200
Memory Form Factor	DIMM
Memory Type	RDIMM/LRDIMM

PCIe:

PCIe Configuration

Riser Card CRS2033:
– 1 x PCIe x16 slot (Gen4 x16), Full height half-length
– 2 x PCIe x8 slots (Gen4 x8), Full height half-length

Riser Card CRS2137:
– 1 x PCIe x16 slot (Gen4 x16 o x8), Full height half-length
– 1 x PCIe x8 slots (Gen4 x0 or x8), Full height half-length
– 1 x PCIe x16 slot (Gen4 x16 or x8), shared with OCP 2.0, Full height half-length

Riser Card CRS2027:
– 2 x PCIe x8 slots (Gen4 x8), Low profile half-length

1 x OCP 3.0 mezzanine slot with PCIe Gen4 x16 bandwidth from CPU_0
Supported NCSI function

1 x OCP 2.0 mezzanine slot with PCIe Gen3 x8 bandwidth from CPU_1
Supported NCSI function

Power:

# PSU	2
DC Input	240Vdc, 10A
DC Output	Max 1000W/ 100-120V~ 12V/ 81.5A 12Vsb/ 2.5A Max 1600W at 200-240V or 240Vdc Input 12V/ 133A 12Vsb/ 2.5A
Efficiency Rating	80 Plus Platinum
Wattage	1600
AC Input	100-120V~/ 12A, 50-60Hz 200-240V~/ 10.0A, 50-60Hz

Processor:

# CPUs	2
Processor Generation	3rd Generation Intel® Xeon® Scalable Processors
Socket	2 x LGA 4189 Socket P+
Processor Chipset	Intel® C621A Express Chipset

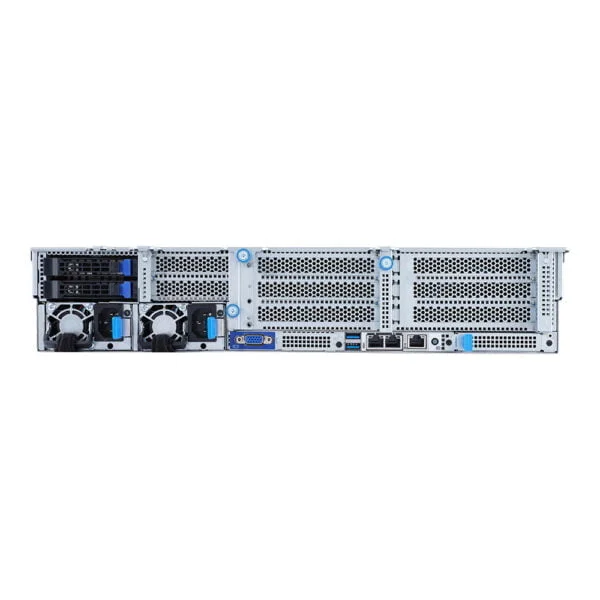

Rear IO:

# RJ45 1Gb/s	2
# VGA	1
Rear IO - # USB 3.2 Gen 1 Type-A	2
Rear IO - LED	1 x ID button with LED

Software:

Supported OS	Linux, Windows Server

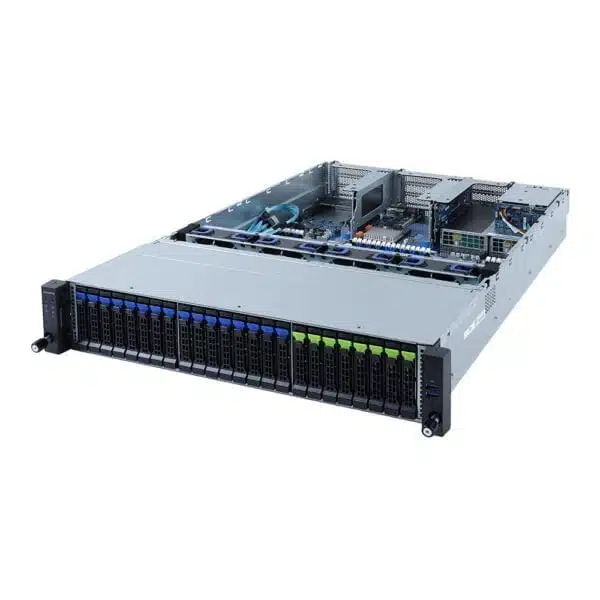

Storage Bays:

# Front 2.5 SATA/SAS Hotswap	16
# Front 2.5 SATA/SAS/Gen4 NVMe Hotswap	8
# Rear 2.5 SATA/SAS Hotswap	2 *SAS card is required to enable drive bays

Video:

Onboard Graphics	Integrated in Aspeed® AST2600 2D Video Graphic Adapter with PCIe bus interface 1920×1200@60Hz 32bpp, DDR4 SDRAM

Warranty:

Mfr Warranty Length (M)	36
Mfr Warranty Type	Return to Base

* Specifications for older discontinued variants can be view by clicking here
