RS AE-SOC0 G-U2N1-P2G0-E26I0 2U Rackmount Dual AMD EPYC™ 7003 Storage Server
SKU: RS AE-SOC0 G-U2N1-P2G0-E26I0
Out Of Stock (End of Life)
System Configuration
Out Of Stock (End of Life)
Details & Specifications
Details & Specifications
Chassis:
| Chassis Form Factor |
2U Rackmount |
|---|
Dimensions:
| Item Depth (CM) |
88 |
|---|---|
| Item Height (CM) |
8.7 |
| Item Width (CM) |
43.8 |
| Rack Units |
2U |

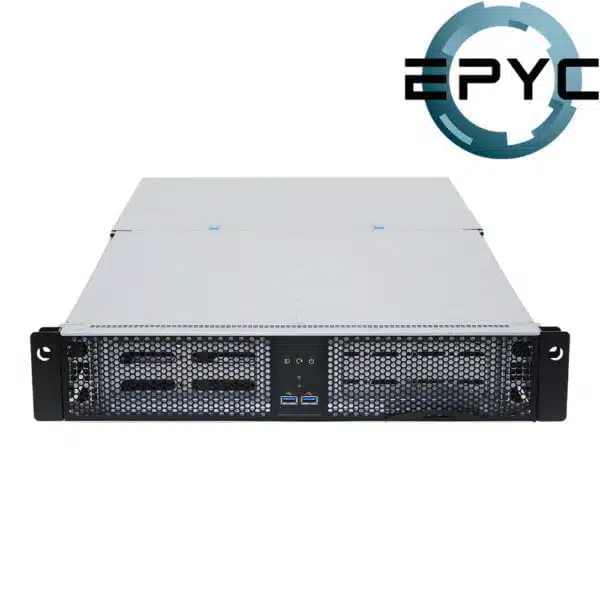

Front IO:
| Front IO - # USB 3.2 Gen 1 Type-A |
2 |
|---|---|
| Front IO - LED |
1 x Power button with LED |
Internal IO:
| # Buzzers |
1 |
|---|---|
| # Front panel headers |
1 |
| # VROC connectors |
1 |
| Internal IO - # USB 3.2 Gen 1 Type-A |
1 |
Memory:
| # Memory Slots |
16 |
|---|---|
| DDR Rev. |
DDR4 |
| Max. Memory Capacity (GB) |
4096 |
| Max. Memory Channels |
8 |
| Max. Supported Memory Frequency (MHz) |
3200 |
| Memory Form Factor |
DIMM |
| Memory Type |
RDIMM/LRDIMM |
PCIe:
| PCIe Configuration |
Total 6 x low profile PCIe Gen4 expansion slots |
|---|
Power:
| # PSU |
2 |
|---|---|
| AC Input |
100-240V~/ 12-7A, 50-60Hz |
| DC Input |
240Vdc/ 6.5A |
| DC Output |
Max 1000W/ 100-240V~ |
| Efficiency Rating |
80 Plus Platinum |
| PSU Redundancy |
1+1 |
| Wattage |
1300 |
Processor:
| # CPUs |
2 |
|---|---|
| Processor Generation |
AMD EPYC™ 7003 series processor family |
| Socket |
Socket SP3 |
| Processor Chipset |
System on Chip |

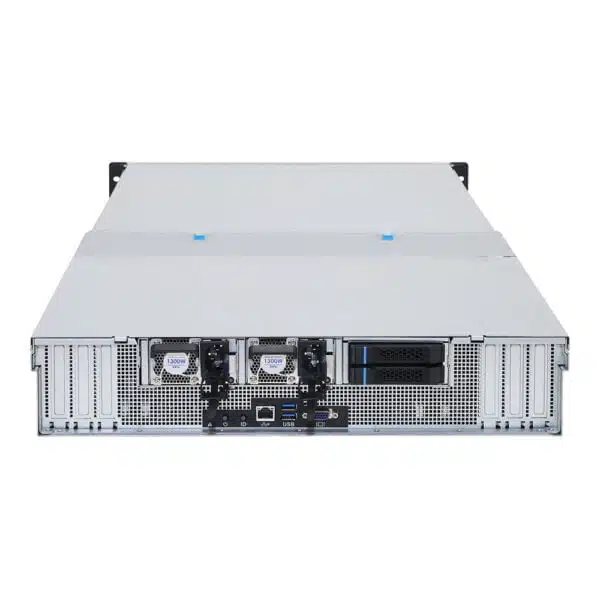

Rear IO:
| # VGA |
1 |
|---|---|
| Rear IO - # USB 3.2 Gen 1 Type-A |
2 |
| Rear IO - LED |
1 x Power button with LED |
Software:
| Supported OS |
Linux, Windows Server |
|---|
Storage Bays:
| # Rear 2.5 SATA/Gen4 NVMe Hotswap |
2 |
|---|---|

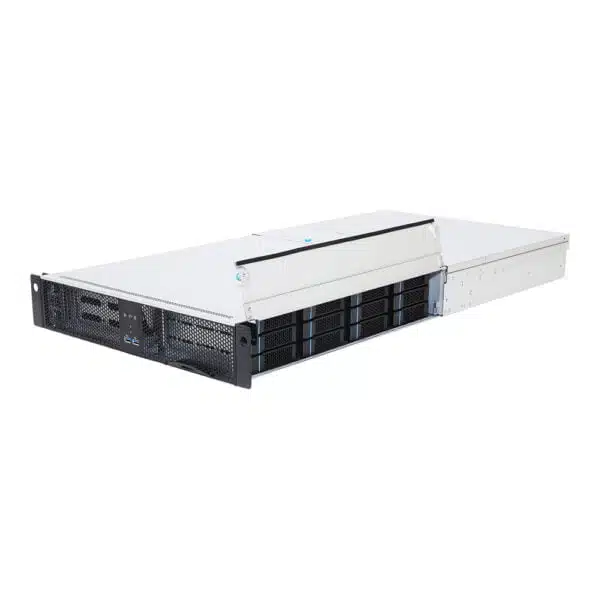

| # Side 3.5 SATA Hotswap |
24 |
Video:
| Onboard Graphics |
Integrated in Aspeed® AST2500 |
|---|
* Specifications for older discontinued variants can be view by clicking here
