RS AE-SOC0 G-U1N1-P1G1-E2I0 Single AMD EPYC 1U Short Depth Server System
SKU: RS AE-SOC0 G-U1N1-P1G1-E2I0
Out Of Stock (End of Life)
System Configuration
Out Of Stock (End of Life)
Details & Specifications
Details & Specifications
Chassis:
| Chassis Form Factor |
1U Rackmount |
|---|---|
| System Fans |
2x 40x40x28mm (25,000rpm) |
Cooling:
| 40x40x56mm (25,000rpm) |
5 |
|---|
Dimensions:
| Item Depth (CM) |
40 |
|---|---|
| Item Height (CM) |
4.35 |
| Item Width (CM) |
43.8 |
| Rack Units |
1U |

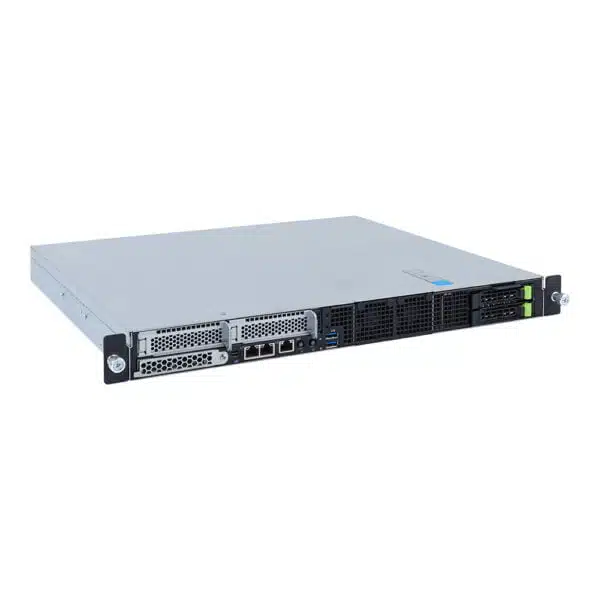

Front IO:
| # Front USB 3.2 Gen 1 Type-A |
2 |
|---|---|
| # ID button with LED |
1 |
| # miniDP |
1 |
| # RJ45 1Gb/s |
2 |
| # System status LED |
1 |
| Power button with LED |
1 |
Internal IO:
| # Front Panel connector |
1 |
|---|---|
| # HDD BPB connector |
1 |
| # Int USB 3.2 Gen1 Header |
1 |
Memory:
| # Memory Slots |
8 |
|---|---|
| DDR Rev. |
DDR4 |
| Max. Memory Capacity (GB) |
2048 |
| Max. Memory Channels |
8 |
| Max. Supported Memory Frequency (MHz) |
3200 |
| Memory Form Factor |
DIMM |
| Memory Type |
RDIMM / LRDIMM |
PCIe:
| PCIe Configuration |
2 x Full-height Full-length PCIe Gen4 expansion slots |
|---|
Power:
| # PSU |
1 |
|---|---|
| AC Input |
100-240V~/ 10-4A, 50-60Hz |
| DC Input |
240Vdc/ 4.5A |
| DC Output |
800W |
| Efficiency Rating |
80 Plus Platinum |
Processor:
| # Processors |
1 |
|---|---|
| Processor Generation |
AMD EPYC™ 7003 series processor family |
| Socket |
Socket SP3 |
| Processor Chipset |
System on Chip |
Software:
| Supported OS |
Linux, Windows Server |
|---|
Storage:
| # M.2 |
2x M.2 slots on CMTP182 |
|---|
Storage Bays:
| # Front 2.5 SATA/Gen 4 NVMe Hotswap |
2 |
|---|
Video:
| Onboard Graphics |
Integrated in Aspeed® AST2600 |
|---|
Warranty:
| Mfr Warranty Length (M) |
36 |
|---|---|
| Mfr Warranty Type |
Return to Base |
* Specifications for older discontinued variants can be view by clicking here
